Jazan Port


Port Specifications
  • Lat. 16 ° 54 'N=42 ° 32'E. British Admiralty chart 15 and 16, Saudi charts #26 #27, Admiralty Pilot # 64.
  • Capable of servicing vessels up to 225 meters in length and 12 meters in draft.


Storage
  • Shed storage area of 16,896 m2;
  • Open storage area of 75,000 m2;
  • Container terminal open storage area of 122,000 m2.





Berthing Information

12 berths are available for all types of cargo operations. The depths at the berths vary from 10 meters to 12 meters at Lowest Astronomical Tide (LAT).
Port Quays
Quay NumberLengthUsed ForDraught
Quay 1200 mGeneral Cargo12 m Draught
Quay 2180 mGeneral Cargo12 m Draught
Quay 3180 mGeneral Cargo12 m Draught
Quay 4180 mGeneral Cargo10-11 m Draught
Quay 5180 mGeneral Cargo/RORO10 m Draught
Quay 6190 mGeneral Cargo10 m Draught
Quay 7120 mGeneral Cargo10 m Draught
Quay 8180 mGeneral Cargo/RORO10-11 m Draught
Quay 9180 mGeneral Cargo10-11 m Draught
Quay 10150 mContainers12 m Draught
Quay 11170 mContainers12 m Draught
Quay 12200 mContainers + RORO12 m Draught
Total Length Quays 1-91590 mGeneral Cargo
Total Length Quays 10, 11, 12520 mContainers12 m Draught

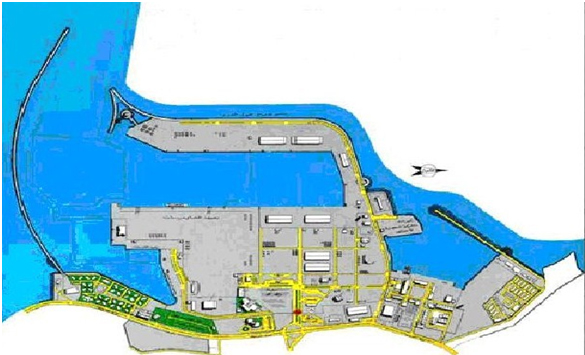

Map of Jazan Port
