Jubail Commercial Port | |
| |
| Port Specifications | |
- 27° 01’ N = 49° 40’ E. British Admiralty charts 3718, 3788.
- Operations run 24 hrs/day 365 days/year.
- The approach channels to the Port are covered by radar and can be contacted on “INDUSTRIAL MARINE” V.H.F channel 16- 67.
- Boarding ground is 27° 07’ N = 49° 47' E
- Pilotage is compulsory for vessels over 150 GRT.
- Towage available with Voith Schneider Propulsion tugs.
- L.P.G. carriers are allowed only daylight loading movements.
- Fresh water available on all operational berths.
- Bunkers available by appointed.
- All vessels must have copy of G.C.C. Rules & Regulations for Seaports
| |
Storage | |
- 2 warehouses for external storage, total area 18,000 m2;
- 10 warehouses for internal storage, total area 87,000 m2;
- Internal open storage yard, total area 450,000 m2;
- External open storage yard, total storage area 900,000 m2.
| |
Container Terminal Specifications | |
- Terminal area: 135,000m2.
- Container storage yard: 100,000m2.
- Storage capacity: 14,000 TEU.
- 120 reefer plugs (480 volts, 60 cycles).
- Container Freight Station with 4 sheds and total area of 18,000m2.
|
Berthing Information | |
The Port has a total of 20 berths, total length 3,780 meters: | |
- 2 berths for container;
- 3 berths for general cargo;
- 2 berths for bulk grain;
- 2 berths for port marine crafts;
- 3 berths for visiting ships;
- 4 additional berths to be used at times of heavy activity;
- 2 berths at the shallow waters area, total length 440 meters; and
- 2 berths at the fishing harbor, total length 320 meters.
| |
| Berth Number | Berth Length (m) | Water Depth (m) | Width of Facing Basin (m) |
| Allowed Draft |
| Throughout 24 Hours (m) | At High Tide (m) |
|
| From 1 to 8 | 212.5 | 12 | 300 | |
| From 9 to 10 | 300 | 14 | 450 | |
| From 11 to 16 | 250 | 14 | 300 | |
| |
Handling Equipment | |
- 2 gantry cranes capacity 30.5 tons;
- 13 mobile cranes capacity 36, 40 and 55 tons;
- 3 containers lifts capacity 30 tons;
- 7 container Spreaders;
- 16 High-bed Trailers;
- 75 Forklifts capacity ranging from 2 tons to 35 tons;
- 4 Top-loaders capacity 35 tons;
- Head trucks and trailers;
- Mobile lighting towers;
- Hoppers and crabs capacities ranging from 3 to 15 m3.
| |
The Port utilizes the following equipment: | |
- 2 ASD type tugboats;
- 5 VSP type tugboats;
- 1 Floating Crane with 200,000-ton lifting capacity;
- 2 oil recovery vessels;
- 1 Buoy Laying Vessel;
- 3 Mooring Boats; and
- 5 Pilot Boats.
| |

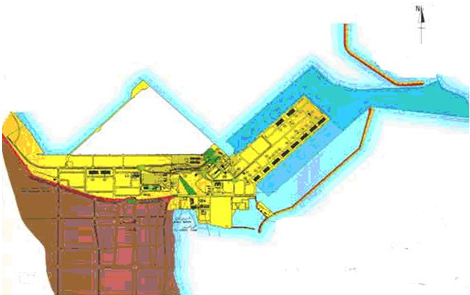

Jubail Commercial Port Map | |
|
| | |
